L&L Products

L&L REINFORCE

Composite Panel Stiffeners

L&L Reinforce

Providing Superior Local Panel Reinforcement and NVH Improvement.

Our Composite Panel Stiffeners comprise an expanding structural adhesive contained within a woven glass fabric reinforcement and are installed in the body shop prior to the Ecoat process. Composite Panel Stiffeners offer excellent substrate adhesion and pliability, which enables robust adhesion for contoured geometries.

We approach every project with detailed analysis, enabling our engineers to determine the ideal format, size, and positioning of the Composite Panel Stiffener and to provide our customers with optimal performance.

Why L&L Reinforce
Composite Panel Stiffeners?

PERFORMANCE

Provides local reinforcement to address panel rigidity and reduce vibration for improved noise, vibration, and harshness (NVH) performance.

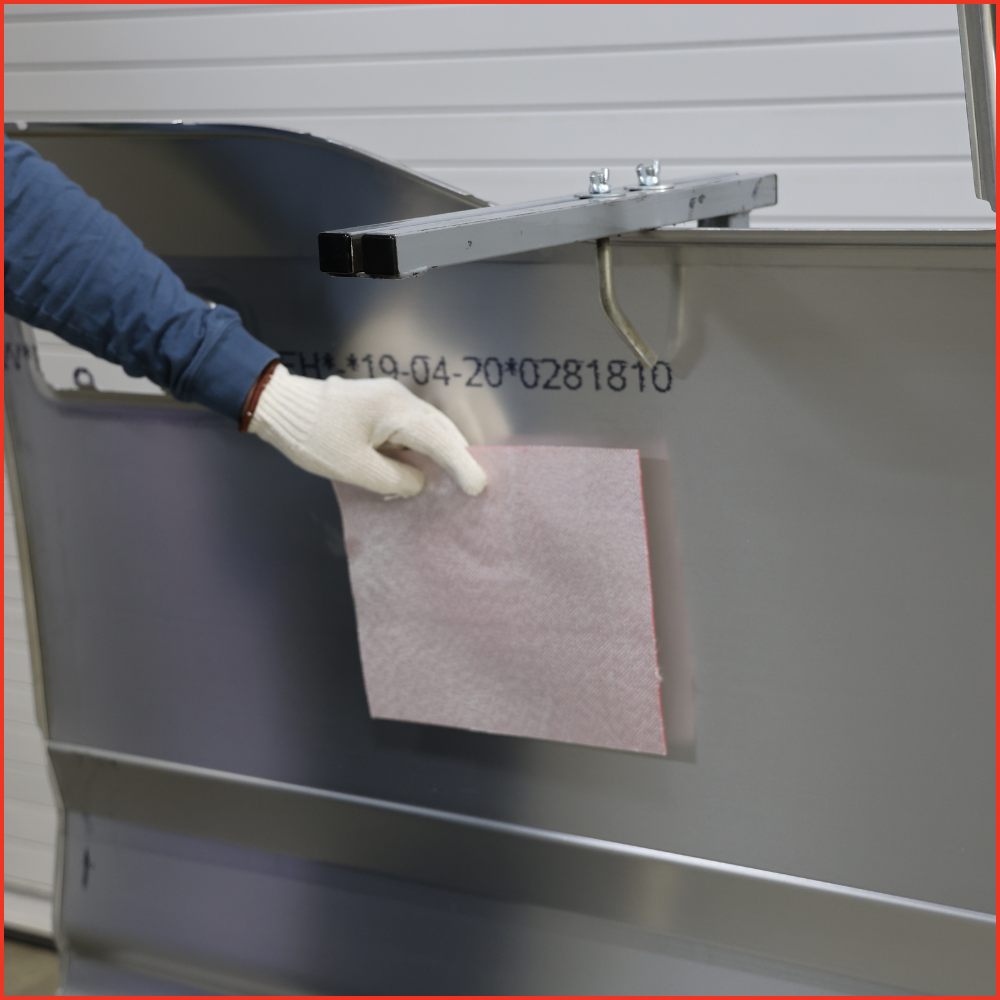

LIGHTWEIGHT

Achieves overall weight savings, allowing OEMs to use lower gauge metal and eliminates the need for additional stamped parts and eliminates the need for custom-rolled material for reinforcement.

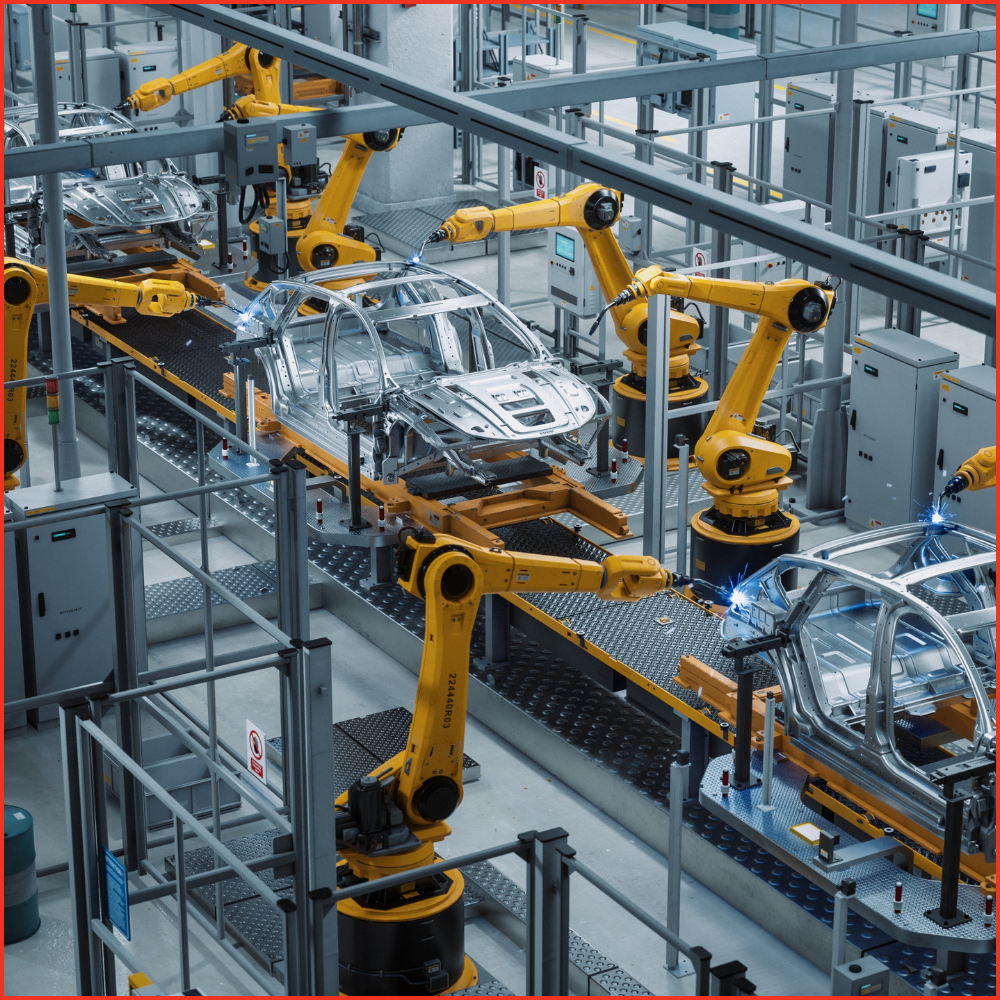

PROCESS

L&L Reinforce Composite Panel Stiffeners optimize not only performance but process by:

  • Limited substrate surface preparation needed, including on oily surfaces
  • Wash-off resistant
  • Pressure-sensitive adhesion to enable placement prior to curing
  • Integrates into the existing E-coat process without additional equipment

Product Attributes

  • Superior green state adhesion to various metal substrates and durable bond once cured
  • Ability to apply to complex contours or large, flat areas, and can include vertical or inverted surfaces
  • Magnetic products are available for inverted applications
  • Patches can be either pliable for stiff before curing
  • Provides panel durability in high fatigue standings

Solutions

Standard Composite Panel

Learn More

Standard Composite Panel

  • L&L Reinforce pressure-sensitive, heat-activated foaming structural adhesives contained within a glass fabric reinforcement. It is designed to address stiffness (panel rigidity), NVH (excessive panel vibration and noise) and weight.

Composite Panel Stiffener for Oily Metal Substrates

Learn More

Composite Panel Stiffener for Oily Metal Substrates

  • This product has similar properties of standard composite panel stiffeners but has improved adhesion to oily metal substrates. It was developed with properties to pass customer-specific wash-off resistance tests.

Magnetic Composite Panel Stiffener

Learn More

Magnetic Composite Panel Stiffener

  • This product’s magnetic properties are best suited for steel substrates with the need for low expansion or for inverted applications. It is also suitable for water fording areas for corrosion resistance.

Application Areas

AUTO & COMMERCIAL VEHICLE

  • Door panels
  • Roof panels
  • Hood
  • Fender (front & rear)
  • Lift gate and tailgate panels
  • Floor panels

See our solutions and applications in action on the Automotive industry page and Commercial Vehicle industry page.

Resources

Download our resources to find out how our Composite Panel Stiffeners can be tailored to your needs.

Composite Panel Stiffener Line card
